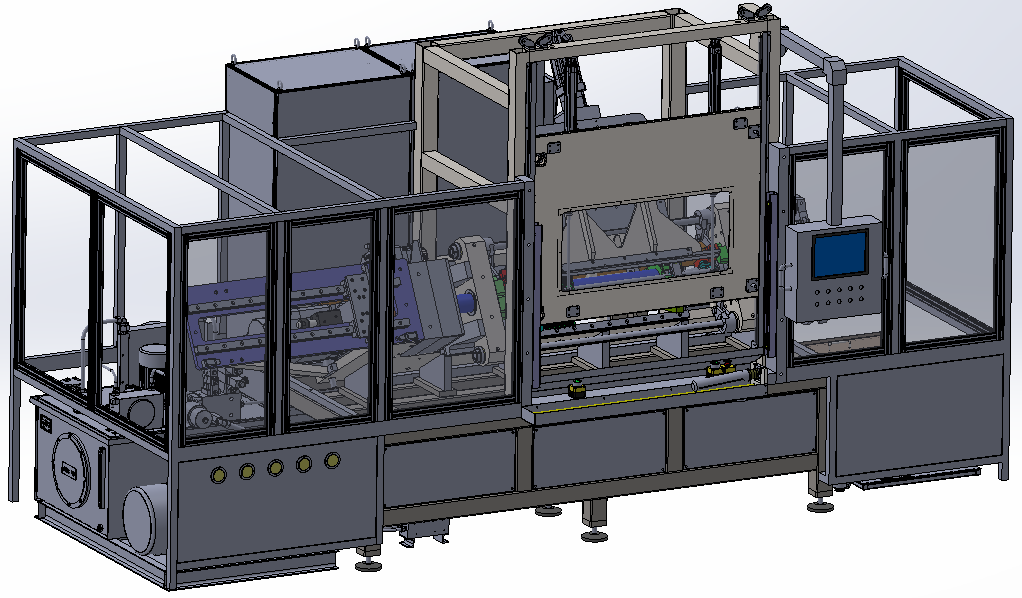

Metal bellow forming machine

We provide the metal bellow machines & production line to Witzenmann and Senior Metal Bellows, all our metal bellow machine has high precision, and quick forming speed, clean design and one time forming process, metal bellow can be produced from single- or multi-layter tubes with various manufacturing techniques for a wide range of applications in different business lines.

We use the clean water as the medium of hydropress, it's very environment-friendly for the products. We use a special designed pressure stabilization equipment to keep the pressure presision, then gurantee the metal bellow's quality.

Moreover, we manufacture special-purpose machines according to the customer’s requirements, modified for the required part quantity, dimensions, and accuracies.

Machine size: 3600mm*1600mm*2400mm
Power: 70KW
Forming way: Pressed water
Tube wall thickness:0.15~0.5mm
Tube layers: 1~4 layers
Hydraulic pressure:600~4500PSI
Machine Precision: 0.02mm
Tube Diameter:20~150mm
Tube Length:200~1000mm

Brand parts:

Electrical box: Rittal
Steel Structures: 45 Ni-P plating
Pneumatic: FESTO\SMC
Hydraulic parts: Yuken
Servo motor: Siemens, Yaskawa
Water pressure control:TESCOM
Electric: Mitsubishi, siemens, Schneider

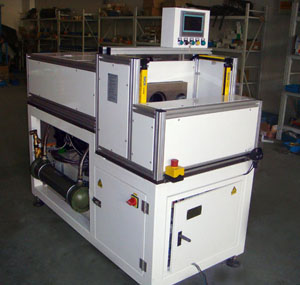

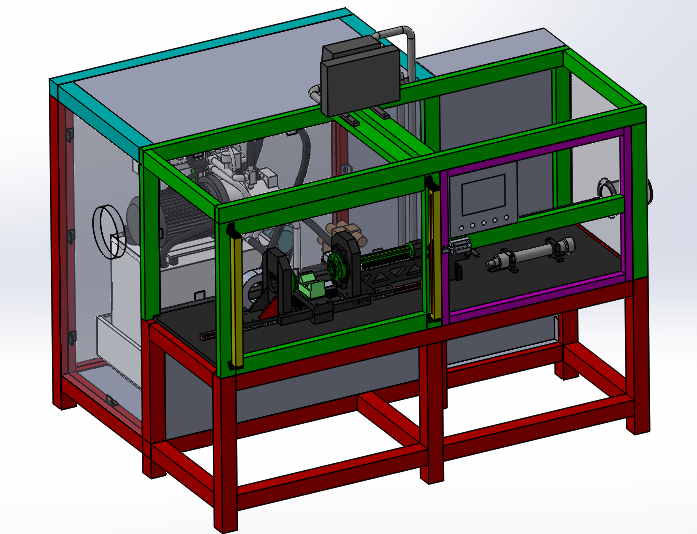

Metal bellow forming machine	Metal bellow cutting machine	Metal bellow end machine
